Operating

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

TEDDY ON THE
OPERATING TABLE
PRE-OP

TEDDY INTERNAL
ORGANS

BROKEN WIRES
ON/OFF WHEEL

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

SPRING FROM
CASSETTE PLAYER
STUCK TO SPEAKER

OPENING HEAD (FOAM
SKULL REMOVED)

MISSING SPRING
LOWER MOUTH

CLOSE UP BROKEN
NECK

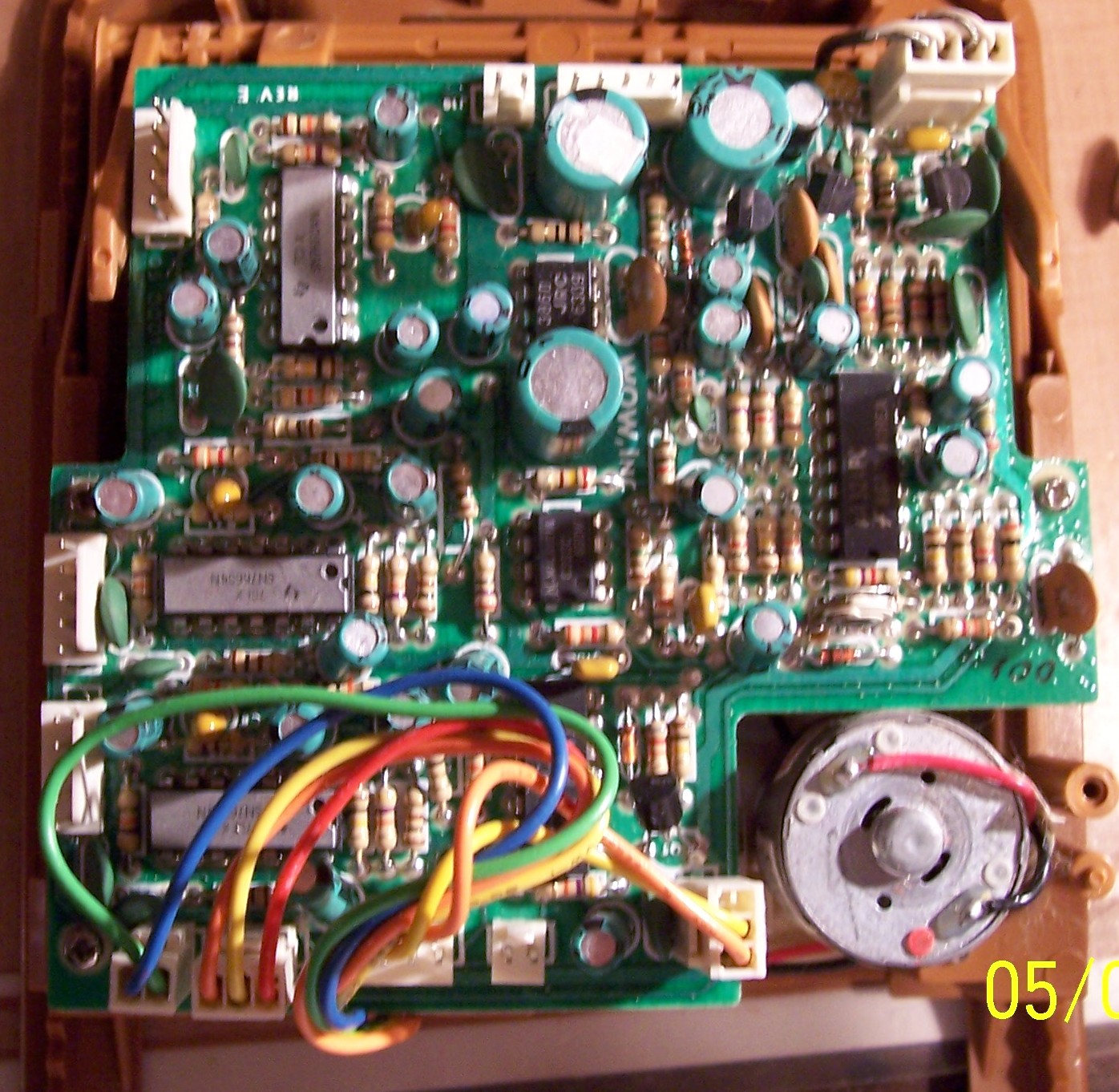

MAIN CIRCUIT BOARD

BROKEN OFF LOWER MOUTH

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

TAPE PLAYER
AND HOUSING
UNDER CIRCUIT
BOARD

LOCATION OF MISSING
SPRING FOUND ON
SPEAKER. BELT OFF TRACK

WORN CIRCUIT BOARD
COMPONENTS AND WIRES
REPLACED

CORRODED GRUBBY
CONNECTION

SECONDARY CIRCUIT
BOARD ON TAPE PLAYER

CORRODED BATTERY
SPRINGS

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

REBUILT SERVOS IN PLACE.
NEW LOWER MOUTH

NEW GRUBBY
CONNECTION AND
WIRES

NEW WIRES SOLDERED ON
ON/OFF WHEEL

REBUILDING SERVO MOTORS

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

TEDDYS BODY RIGHT OUT
OF THE WASHER AND DRYER

TEDDYS LEGS AND FOAM
PIECES DISINFECTED AND
CLEANED

REPLACING CASSETTE SPRING
AND BELT

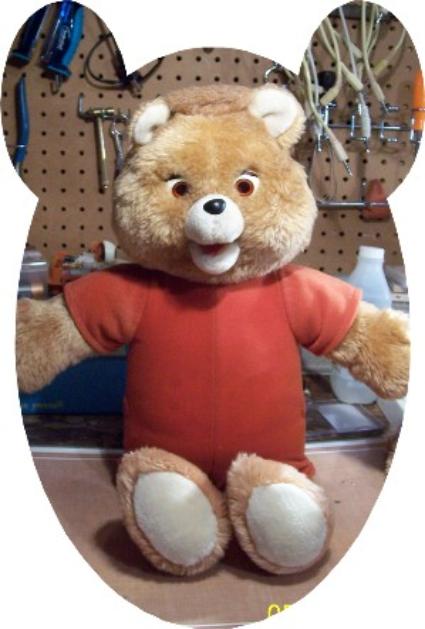

Teddy all sewed up
and ready for
discharge

TEDDY BROKEN NECK

PATIENT: Teddy Ruxpin
CHIEF COMPLAINT: Found unresponsive. Eyes and mouth will not move. Tape player works a
second or two then quits. Lower mouth dislocated. Unable to control best friend Grubby
OPERATION: Exploratory Lap
PHYSICIAN: Dr. Eeyore
NEXT OF KIN: Grubby (best friend), Newton Gimmick (friend)
FINDINGS: Corrosion on battery box, corrosion of the Grubby connection, dislocated wires on
ON/OFF wheel, worn wires on speaker, loose connections of components on main circuit board,
dirty cassette player, dry rot on belt on cassette player, spring off cassette player and struck to
speaker, broken neck, broken lower jaw, poor connections on servo motors, servo motors dirty
and need lubrication, missing spring on lower mouth servo motor, body dirty
WORK PREFORMED: Opened up and taken apart. Battery springs replace, Grubby connection
replaced, worn components on circuit board and wires replaced, new wires soldered on ON/OFF
wheel, cassette player cleaned and repaired, servo motors rebuilt, lower jaw replaced, neck
support replaced, body and foam washed and disinfected, arms and legs restuffed and sewn
back together
