OPERATING ROOM 2

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

Broken Neck
support with
compression of
the wires

Retaining clips
broken off Grubbys
body which is
coming aparf

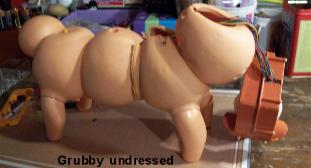

Grubby on the
operating table
with his hind
quarters off

Bend springs and
corrosion in battery
box

Broken Neck
support

Grubby on the operating table

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

Grubbys battery
compartment and
connection site to Teddy

Speaker housing with
broken off pieces

Broken Neck piece

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

Grubbys servo
motors. Note
spring missing
from lower servo
motor

Grubbys main
circuit board

Wires removed from
the circuit board

Exposed wires

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

Wires and servo
motors removed from
facial frame and circuit
board

Circuit board
and speaker
back in place

Testing at every
stage of
re-assembly

Circuit board
soldering

Facial frame and
features

Hind quarters
re-assembled

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

Grubby body right out of the
washing machine

Front part of body
on

Final back seam

More Testing

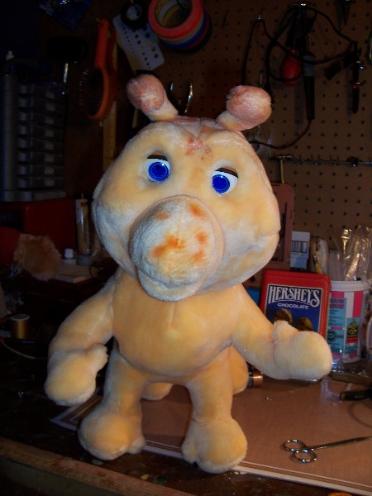

BACK TOGETHER AND
ALREADY TO BE ADOPTED

PATIENT:   Grubby
CHIEF COMPLAINT:  Will not wake up.  Will not sing along with his
friend Teddy Ruxpin.  Head falls to one side
SURGEON:  Dr Eeyore
NEXT OF KIN:  Teddy Ruxpin (friend)  Newton Gimmick (Friend)
FINDINGS:  Battery springs corroded and bent, neck support
broken, body separating where supports have snapped, crimped
and exposed wires, dirty servo motors, missing spring from
lower servo motor, fur dirty, smells of smoke
WORK DONE: Taken apart, body washed, broken neck piece
removed and replaced, broken wires replaced,servo motors
rebuilt, Circuit board inspected and re-soldered, and re-assembled
